Sevtap Karakurt1, Erol Pehlivan1, Serdar Karakurt2*
1 Department of Chemical Engineering, Technical University of Konya, Turkey 2 Department of Biochemistry, Faculty of Science, Selcuk University, Turkey
Corresponding author: Dr. Serdar Karakurt, Associate Professor, Department of Biochemistry, Faculty of Science, Selcuk University, Konya, Turkey
Received: December 10, 2018 Published: January 19, 2019
Abstract
Canceris the most common cause of the deaths and environmental pollutant is one of the main reasons for it. Within the scope of water intended for human consumption, trace arsenic concentration in drinking waters must be supplied below 10 µg/L, in order to prevent the carcinogenic effect of it. The aim of this article is the utilization of synthetic resins for decreasing high concentration of arsenic in water bodies. Monoplus M600, Lewatit FO36, Lewatit Sybron Ionac SR7 and Selion ASRFG3300 anion exchange resins were used for the removal of arsenic. The effects of the physicochemical parameters; reaction time, initial arsenic concentration, pH and ion exchange resin amount on arsenic sorption were investigated. The optimum resin amounts were found to be 60 mg for Lewatit Monoplus M600 and Lewatit Sybron Ionac SR7 whereas it was 40 mg for Lewatit FO36 and Selion ASRFG3300. Lewatit FO36, Lewatit Monoplus M600 and Lewatit Sybron Ionac SR7 resins matched pseudo-first order model while Selion ASRFG3300 matched pseudo-second order model. Adsorption of all resins fit monolayer Langmuir adsorption isotherm. Maximum adsorption capacities (Q0 values) of the two resins with iron oxide structure were found to be higher than the other two resins. The removal rates between 100 µg/L arsenic solution and surface water varied due to the matrix effect of the surface water. Treatment with ion exchange resins decreases the cytotoxic properties of arsenic on human colorectal epithelium cell.
Keywords: Arsenic; Ion exchange; Isotherm; Kinetics; Colon cancer
Introduction
Water is the most important source for the sustainability of life. By the increase in the quality of drinking water, life span of the human has increased. Increase in the quality of drinking water is supplied by the removal of toxic contents that are going into the drinking water by either natural ways or by anthropogenic sources. Within the most common toxic materials in water are the trace metals and one of the most important metals in water is arsenic. Organic arsenic species are mostly encountered in the shellfish whereas more toxic inorganic arsenic species get involved in the drinking water by the dissolution of geological formations or as a result of the anthropogenic sources [1, 2]. Trace concentrations of arsenic s vital for hamsters, goats and chickens however, according to the determinations of IARC (International Agency for Research on Cancer), with the increase of the concentration it becomes toxic and carcinogenic [3-6]. Due to these hazardous effects, maximum allowable concentration of arsenic in drinking waters is limited to 10 µg/L by WHO (World Health Organization) and USEPA (United States Environmental Protection Agency).
In the cases of having not enough arsenic-free water in hand, arsenic-rich water must be treated for the use of the public. The treatment methods commonly used for the removal of arsenic are chemical precipitation, adsorption, ion exchange and membrane systems. Ion exchange method is superior to the other treatment methods because of its low operating costs, low energy requirements and also regenerability of the ion exchange resins. However, because of the existence and high concentrations of other anions, arsenic removal may result with lower rates than expected.
After cardiovascular diseases, the main cause of death is cancer [7]. According to the 2012 data, colorectal cancer (CRC) remains a major health problem leading to over 700000 deaths worldwide [8]. Increased level of CRC is associated with bad nutrition habits, smoking, intestinal inflammatory disease, and environmental pollutants. Increased arsenic consumption causes decreased mitochondrial pathways and energy production due to its interaction with α-ketoglutarate [9].
In this study, selected ion exchange resins were characterized and utilized for arsenic removal in order to investigate the adsorption capacity with varying reaction time, initial arsenic concentration, pH and ion exchange resin amount. Fitness of the adsorptions to Langmuir and Freundlich adsorption isotherms and fitness of the kinetic to pseudo-first order and pseudo-second order kinetic equations were studied.
Materials and Methods
Chemicals and Solutions
Anion exchange resins Lewatit FO36, Selion ASRFG3300, Lewatit Monoplus M600 and Lewatit Sybron Ionac SR7 were used. Lewatit Monoplus M600 is a strongly basic anion exchange resin while the others are weakly basic resins. Lewatit FO36 and Selion ASRFG3300 carry ferric oxide groups in their structure. Functional groups of the resins before and after arsenic sorption were analyzed by FT-IR (Fourier Transform Infrared Spectrophotometer-Perkin Elmer 100 FT-IR spectrophotometer, ATR).
Arsenic solutions were prepared by appropriate dilutions of Merck 1000 mg/L arsenate solution. Nitric acid (HNO3) and sodium hydroxide (NaOH) were of analytical grade and obtained from Merck Co. All aqueous solutions and dilutions were made with ultra-pure water purified with Millipore Direct-Q.
Determination of arsenic
Arsenic analyses were made by Agilent 7500a model ICP-MS instrument. Calibration range for arsenic was 0.01 µg/L to 50 µg/L with a correlation coefficient of 0.99977. Limit of detection of the instrument according to method EPA 200.8 was found to be 0.2 µg/L.
Adsorption experiments
Adsorption experiments were carried according to batch sorption technique. Initial arsenic concentration was 100 µg/L that is 10-fold of the maximum acceptable arsenic concentration and a probable concentration that can be met at any of the surface water in Nigde, Nevsehir or Aksaray cities of Turkey. Varying amounts of ion exchange resins were mixed with 50 mL arsenic solutions in shaker. The effect of ion exchange resin amount on arsenic sorption was studied and optimum amount of each ion exchange resin at specified conditions was determined. Surface water that is collected from Selime-Aksaray (Turkey) was used for the evaluation of arsenic sorption by the optimum resin amounts. Because of the matrix effect and possible arsenic forms contained in the surface water, lower arsenic sorption results were obtained.
Then the effect of initial arsenic concentration on the arsenic sorption was investigated. The arsenic removal data obtained from the results of ICP-MS after the sorption were used in order to investigate the fitness of the sorption to Langmuir and Freundlich isotherms. The arsenic removal % and equilibrium adsorption capacity (qe) were calculated from Equations 1 and 2.
Where C0 and Ce are the initial and equilibrium concentrations of arsenic in µg/L, V is volume the solution (L) and W is the amount of ion exchange resin (mg). Equilibrium adsorption capacity, qe is the amount of arsenic adsorbed by one-milligram resin.
Adsorption isotherms are numeric expressions that describe the relationship between the amount of adsorbent and adsorbed contaminant concentration at a definite temperature. Two commonly applied adsorption isotherms are Langmuir and Freundlich isotherms [10,11].
Langmuir adsorption isotherm is the adsorption model that defends the monolayer coverage onto homogenous surface, however Freundlich adsorption that is the derived from Langmuir adsorption model defends the multilayer coverage onto heterogeneous surfaces [11,12]. Langmuir adsorption isotherm is expressed by Equation 3 or by its linearized form as in Equation 4, respectively. Freundlich adsorption isotherm is expressed by Equation 5 and the linearized form of Freundlich adsorption isotherm is given in Equation 6.
Where Q0 is the monolayer adsorption capacity (µg-arsenic/mg-resin), b is the selectivity constant (L-solution/µg-arsenic), k is multilayer adsorption capacity (µg-arsenic/mg-resin) and n is heterogeneity factor (mg-resin/L-solution) [12].
According to Equation 4, by using the slope and intercept of the plot of Ce/qe versus Ce, Q0 and b can be calculated and according to Equation 6, the slope and intercept of the plot of log qe versus log Ce give way to the calculation of the constants k and n.
The convenience of the studied adsorption to the Langmuir adsorption isotherm is evaluated by the calculation of dimensionless RL as given in Equation 7. If RL value is between 0 and 1, the adsorption is said to be convenient to Langmuir adsorption isotherm [13,14]. If n value of the Freundlich isotherm model is greater than 1, the adsorption is said to be convenient to Freundlich adsorption isotherm [15]. Regression analysis is used in order to decide which adsorption best fits the studied adsorption [12].
Kinetic experiments
In this batch study, kinetic experiments were carried out by mixing the optimum amounts of ion exchange resins with 50 mL of 100 µg/L arsenic solution for varying reaction times and optimum reaction time was determined. By using the experimental data, arsenic sorption of the ion exchange resins were investigated according to pseudo-first order and pseudo-second order kinetic models. Kinetic experiments are necessary studies that must be done during the adsorption processes since it gives information about the efficiency and rate of the reaction. Pseudo-first order and pseudo-second order kinetic models are the most commonly used adsorption kinetic models in the batch studies [16,17].
Pseudo-first order model of Lagergren is expressed by Equation 8 or its linearized form as in Equation 9 [18].
Where qt is the adsorption capacity at time t (µg-arsenic/mg-resin) and k1 is the pseudo-first order rate constant (1/min). According to Equation 9, by using the plot of log(qe-qt) versus t, k1 is calculated from the slope and qe is calculated from the intercept. The proximity of calculated qe to the experimental qe is a measure of the fitness of the studied adsorption kinetic to pseudo-first order kinetic model [19].
Pseudo-second order model that is most appropriate for chemisorption process is expressed by Equation 10 or its linearized form as in Equation 11.
Where k2 is the pseudo-second order rate constant (g.mg-1.min-1). The plot of t/qt versus t as in Equation 11 is used to calculate k2 from the intercept and qe from the slope. The closeness of calculated qe to the experimental qe is a measure of the acceptability of the studied adsorption kinetic as pseudo-first order kinetic model [19].
Cell culture studies
Since the absorption of the drinking water in the body occurs at intestine, cell culture studies were made on human colon epithelial cell, CCD-18Co. CCD-18Co was obtained from ATCC (American Type Culture Collection). Cells were grown in EMEM growth medium with 10% FBS and 2 mM L-glutamine at 37°C. Stock arsenic solutions were diluted with medium at appropriate ratios and varying dosages of arsenic were applied to colorectal cells and incubated for 48 hours. Cytotoxicity studies and cell viability tests were made with Alamar blue reactant by Elisa reader at 620 nm and 680 nm. Inhibition of cell viability was analyzed with GraphPad Prism 5.0 software and IC50 value was calculated from sigmoidal plot [20].
Results and Discussion
Effect of resin amount on arsenic sorption
Each resin with varying amounts ranging from 10 mg to 100 mg was mixed with 50 mL of 100 µg/L arsenic solution. After mixing for a definite period, the samples were filtrated to analyze the arsenic concentration by ICP-MS instrument. Arsenic sorption percentages were calculated by Equation 12.
Where C0 and Ce are the initial and equilibrium arsenic concentrations respectively.
Figure 1 shows the effect of ion exchange resin amount on arsenic sorption. By the increase of resin amount, the sorption also increases. The resin amount of the plateau value is taken as the optimum resin amount since after the plateau, the increase of the resin amount does not further affect the sorption percentage.

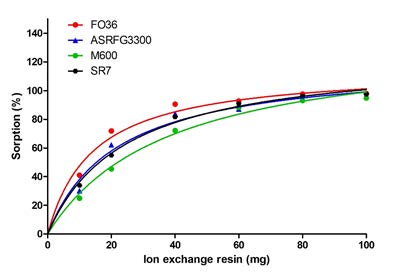

Figure 1: The effect of resin amount on arsenic sorption.
For the determined conditions, the optimum resin amounts for Lewatit Monoplus M600 and Lewatit Sybron Ionac SR7 were determined to be 60 mg whereas they were found to be 40 mg for Lewatit FO36 and Selion ASRFG3300.
The optimum amount of each resin was applied to 50 mL surface water containing 57.61 µg/L arsenic and in Figure 2 the sorption percentages were given as a comparison with 100 µg/L arsenic solution. The cause of arsenic sorption decrease of surface water when compared with 100 µg/L arsenic solution is the matrix effect of the surface water beside the effect of existence of different arsenic forms in the surface water. The surface water contains competitive anions like 41.49 mg/L sulfate and 16.51 mg/L nitrate besides trivalent arsenic that is harder to remove by ion exchange resins.
Figure 2: Arsenic sorption of 100 µg/L arsenic solution and surface water by ion exchange resins.
Effect of reaction time on arsenic sorption
50 ml of 100 µg/L arsenic solutions were mixed with optimum ion exchange resin amounts for reaction times ranging from 5 to 90 minutes and at the end of the reaction the filtered samples were analyzed and the sorption capacities as a function of time were given in Figure 3. In the Figure, qt gives the sorption capacity (µg-As/mg-resin) at a given time t. The sorption capacity is calculated by Equation 13 where C0 and Ce are the initial and equilibrium arsenic concentrations respectively, V (L) is the volume of the solution and W (mg) is the mass of ion exchange resin.
Figure 3: Effect of reaction time on arsenic sorption.
According to Figure 3, by the increase of the reaction time sorption capacity arrives at a value that does not change anymore with the increase of time. Optimum reaction time at the plateau values were taken as 50 minutes for all resins.
Arsenic sorption of ion exchange resins was evaluated by the pseudo-first order and pseudo-second order kinetic models according to Equations 9 and 11. The pseudo-first order and pseudo-second order kinetic parameters are given in Table 1.
Table 1: Pseudo-first order and pseudo-second order kinetic parameters for arsenic sorption of resins.
Anion exchange resin | qe,experimental(µg/g) | Pseudo-first order | Pseudo-second order | ||||
qe, calculated (µg/g) | K1 (1/dk) | R2 | qe, calculated (µg/g) | k2 (g/mg.dk) | R2 | ||
Lewatit FO 36 | 108.174 | 142.56 | 0.1 | 0.9702 | 150.07 | 0.415 | 0.998 |
Selion ASR3300FG | 94.916 | 73.38 | 0.058 | 0.9888 | 109.36 | 0.914 | 0.9955 |
Lewatit Monoplus M600 | 71.068 | 59.58 | 0.06 | 0.9904 | 87.34 | 0.894 | 0.9951 |
Lewatit Sybron Ionac SR7 | 74.128 | 85.86 | 0.075 | 0.9824 | 108.14 | 0.434 | 0.9913 |
In order to decide the kinetic mechanism of the adsorption, the closeness of qe,experimental values with qe,calculated values of pseudo-first order and pseudo-second order kinetic models were evaluated and the convenience to the kinetic model must also be supported by the correlation coefficients. Lewatit FO36, Lewatit Monoplus M600 and Lewatit Sybron Ionac SR7 resins are convenient with pseudo-first order model which addresses to physisorption while Selion ASR3300FG is convenient with pseudo-second order model that addresses chemisorption.
Effect of pH on arsenic sorption
The determined optimum amounts of each resin were mixed with 50 mL 100 µg/L arsenic solution for 50 minutes at varying pH ranges, and in order to find the optimum pH of the sorption reaction varying ranges of pH from 2 to 7 were supplied by the addition of 0.1 M HNO3 or 0.1 M NaOH solutions. At the end of the reaction time, the samples were filtered and analyzed by ICP-MS and the effect of pH on the sorption was given in Figure 4. The sorption percentages of strongly basic ion exchange resin Lewatit Monoplus M600 was not affected by the pH changes however weakly basic ion exchange resins (Lewatit FO36, Selion ASR3300FG and Lewatit Sybron Ionac SR7) were significantly affected by the pH changes. Optimum pH values of arsenic sorption at the determined conditions for Lewatit FO36, Selion ASR3300FG, Lewatit Monoplus M600 and Lewatit Sybron Ionac SR7 are 4.41, 4.69, 4.00 and 5.71 respectively.
Figure 4: Arsenic sorption at different pH values.
Effect of initial arsenic concentration on arsenic sorption
Varying concentrations of arsenic were prepared by the dilution of the stock solution. 50 mL of arsenic solutions ranging from 100 µg/L to 2 mg/L were mixed with optimum amounts of each resin at optimum pH values for 50 minutes. At the end, the solutions were filtered and analyzed by ICP-MS and in Figure 5, arsenic sorptions for one milligram of resin against equilibrium arsenic concentrations were given. Using the sorption data and Equations 4, 6 and 7, convenience of the sorption to Freundlich and Langmuir sorption isotherms were evaluated and Table 2 was prepared.
Figure 5: Arsenic sorptions for one milligram of resin against equilibrium arsenic concentrations.
Table 2: Freundlich and Langmuir isotherm constants.
Ion exchange resin | Freundlich isotherm | Langmuir isotherm | |||||
n (mg/L) | k (µg/mg) | R2 | b | Q0 (µg/mg) | RL | R2 | |
(L/µg) | |||||||
Lewatit FO 36 | 1.26 | 0.02 | 0.9899 | 0.0025 | 3.297 | 0.8 | 0.9858 |
Selion ASR3300FG | 1.07 | 0.01 | 0.9982 | 0.0005 | 8.177 | 0.95 | 0.9737 |
Lewatit Monoplus M600 | 1.21 | 0.01 | 0.9991 | 0.0016 | 2.759 | 0.86 | 0.9426 |
Lewatit Sybron Ionac SR7 | 1.48 | 0.01 | 0.9955 | 0.0031 | 1.61 | 0.76 | 0.8905 |
Since n values of the resins are greater than 1, adsorptions are said to be convenient to Freundlich isotherm and since RL values are between 0 and 1, adsorptions are said to be convenient to Langmuir isotherm. When the correlation coefficients are compared, it is found that adsorption with Lewatit FO36, Selion ASR3300FG, Lewatit Monoplus M600 and Lewatit Sybron Ionac SR7 fit monolayer Langmuir adsorption isotherm.
The monolayer adsorption capacity Q0 was found to be ranging from 1.508 µg/mg to 8.177 µg/mg. Since realistic studies were made by the choice of initial arsenic concentrations, adsorption capacities were found to be lower when compared with other literatures.
Characterization of the resins before and after arsenic sorption
Characterization of the ion exchange resins before and after arsenic sorption are given in Figure 6. Virgin resins are defined by the O-H stretching vibration band of the adsorbed water around 3262 cm-1 to 3356 cm-1, C-H stretching vibration band around 2925 cm-1 to 2930 cm-1 that may be attributed to the polystyrene structure of the resins and C-H symmetric bending vibration band around 1464 cm-1 to 1482 cm-1 that may be attributed to quaternary amine groups of the resins [21-23]. O-H asymmetric stretching vibration and Fe-O stretching vibration at 1083 cm-1 to 1095 cm-1 and 532 cm-1 to 561 cm-1 bands respectively reveal at the FTIR analysis of Lewatit FO36 and Selion ASR3300FG resins [24]. After the sorption of arsenic on the ion exchange resins, the bands of O-H stretching vibration and C=C stretching vibration shifted and gave smaller peaks while the As-O peaks came in sight around 848 cm-1 to 888 cm-1 [25-27].
Figure 6: FTIR analysis before and after arsenic sorption.
Relative cell viability graphs are given in Figure 7 shows that 100 µg/L arsenic solution causes cytotoxic effects, and inhibits the proliferation and viability of human colon epithelial cell, CCD-18Co. IC50 value of arsenic solution was calculated as 65 ppb before treatment with resins, which was increased up to 3984 ppb after resin treatment. Post-treatment of arsenic solution with ion exchange resin prevents arsenic toxicity on human colon epithelial cell, CCD-18Co. Besides, Arsenic solution also gradually suppressed the growth of the human CRC cells; SW480, SW/As, DLD-1, and COLO201 in a concentration-dependent manner [28].
Figure 7: Effects of resins against arsenic toxicity on human colon cell.
Conclusion
Since the occurrence of arsenic in water is in the anionic form, four anion exchange resins were utilized for the removal of arsenic from 100 µg/L solution and from a real surface water. At the end of the isotherm studies, Lewatit FO 36, Lewatit Monoplus M600 and Lewatit Sybron Ionac SR7 resins were found to follow the pseudo-first order kinetic model whereas Selion ASR3300FG followed the pseudo-second order kinetic model that addresses a chelation reaction of the functional groups with arsenate ions. Arsenic adsorption percentages of strongly basic anion exchange resin Lewatit Monoplus M600 was not affected by the pH changes whereas weakly basic anion exchange resins showed oscillations at the pH-sorption graph. All ion exchange resins obeyed the monolayer Langmuir adsorption isotherm. Maximum adsorption capacities (Q0 values) of the resins Selion ASR3300FG and Lewatit FO36 were found to be higher than the others, due to the included iron oxide structure. Iron oxide structure of these two resins also supplied smaller differences between the adsorption rates of 100 µg/L arsenic solution and surface water. Ion-exchange resins decrease cytotoxic potential of arsenic on human colorectal epithelium cells. This property of resins makes them valuable molecules against arsenic toxicity.
